So the building is pretty much done for the Middletown Scale House. I also needed to build the scale track itself. The process is the same basic idea as what I did in Part I and II for my scale track, except that it needed a second row of PC Board ties for the gantlet track.
A few things I decided to try a little differently. First, I noticed that the PC Board ties weren't centered under the rail on mine. So I first drew, then cut each line. I cut it all the way through the copper because it would also separate that strip from the rest of the copper, requiring less heat and more control when tinning.
One rail was placed with the PC Board tie at the edge of the line, and the opposite rail was just covering the line with the same edge to ensure they were better centered under the rails.
I then went through the process of adding the boards and weathering them. Note that there are a few small pieces at the end of the scale tracks to provide the 2' clearance at either end. All of the end pieces are overlapping so I could saw them even together.
The process of decorating was similar, but this time I applied the Pan Pastels while the stain (ink) was still wet. This worked better I think. I then sanded the whole thing to reduce the amount of color and brightned it with the neutral gray tint again.
When looking at the picture, it's clear that the scale house is white. I'm on the fence as to whether I think the framing is brown or green. Brown would have been the most common, but it really looks like a dark green to me, and NH Hunter Green seemed like a good choice. Chris liked it, so that's what matters. I haven't weathered the building at all yet (and still need to finish the roof).
So this part of the process was, overall, very similar. There is one thing that I thought of after the fact, which might have been more important than I would have thought. I could have tinned the tops of the PC Board ties before soldering them to the main base. It wasn't a big deal tinning them in place, but would have been easier if they were already done.
So the gantlet track itself is made from two Micro Engineering turnouts, with all of the ties (and frog) removed just past the jumper wire. Because the through track doesn't have storm guards, I used some etched tie plates I had on hand from Proto:87 Stores. These are actually turnout ones, and longer, but the longer part will be beneath the storm guard and not visible.
The flux was enough to keep them in place, and they can be soldered. I didn't tin them, just pressed the track down and soldered the track and tie plates to the PC Board tie at the same time.
I did the straight through rail first (based on the photo, the through rails were straight and the ones farther from the scale house), the one farthest from the scale house. I then did the scale rail on the same side of the center line.
I then used two track gauges to keep the rail in gauge while soldering each of the other two rails. The distance between the through track and the scale track is within the prototype range, and was largely dictated by the turnouts themselves. Because the points are so close to the scale track on the prototype, I cut all of the rails on the turnout to match the shortest rails so the track joint would be in the center of the scale, and I wouldn't have to use any extra pieces of rail. I didn't use rail joiners, I just aligned the rail while I soldered it. I also painted the track with my standard Rustoleum Camoflage (Brown) before installing it.
So the problem I have is that the PC Board itself has warped. The ends curve up. I don't know if it was the many applications of heat, or what, but it did. This is a single-sided board, so I don't know if one with copper on both sides would have been better. But I do think that had I tinned the PC Board ties first it might not have warped, or not as much. Chris and I have both decided it's workable, and once it's attached to surrounding trackwork it shouldn't be a problem. It's just a bit annoying that it did.
I'll be putting it all on a styrene base, finishing the concrete frame around the pit, and doing the roof and windows when those arrive. We'll be able to install it on Chris' layout soon!
New Britain Station Main Site
Monday, October 29, 2018
Friday, October 26, 2018
Scale Track Part III
As I mentioned, Chris needs a scale track for his layout. While the Blair Line model I used is a nice kit, the main thing I didn't like is that the floor is a thick piece of wood that ends up flush with the sides. While you can (and I did) paint and weather it to look like a concrete slab, if it's a foundation it should be inset a little bit. In addition, based on measurements found online, I think that the board-and-batten siding uses oversized boards. Overall, I also prefer working with styrene than wood.
But really, I figured it's a simple little building to try my hand at scratchbuilding.
After going through the Railway Prototype Cyclopedia article, I realized I had missed that there is a 2-foot clearance around the scale itself, including the ends, within the scale pit. Which means there is at least 2-feet of wood boards between the end of the scale and the end of the scale pit. It also allowed me to ensure my measurement on all sides were within the standard.
So I started by taking rough measurements of the completed Scale House and cutting out the basic parts.
Board and batten siding can be made from a lot of different size lumber. But the dimensions I went with is essentially a 1" x 10" main board, with a 1" x 4" batten. The space between the battens works out to about 8" so I drew lines at 1' intervals.
I decided on the dimension in part because of what I thought looked good with the options I had on hand, and also what closely matched the dimensions noted on construction sites online.
So I marked the lines on all the parts, and started cutting out the windows and doors. I then completed the battens on a couple of pieces to see how I liked it.
You'll note that the side of the building has been redrawn with a new window location.
And the door has been moved to the back. Why? Because I wasn't really trying to recreate the Blair Line model. I want to make the structure that was there. Of course, we only have a (very) partial shot of the scale house in Middletown. Here's John Wallace's photo again:
I've decided that since most scale houses had windows on both sides, and I think a door would be taller, that the frame on the side is a window. It's pretty much centered on the side, so I moved the windows on both sides. Which means the door needs to be moved to the back. So part of me says the door would be on the side, so you're never stepping out of the building into the way of a moving train. But the general need for the windows makes a door on the back logical.
The other New Haven scale house picture that I could quickly put my hands on is this one. I've seen others, and I can say every once is a little different. Some had the angled corners like the Walthers model, and others were this simple rectangular shack. Since this looks quite similar to the one in Middletown, I'm using it as a guide as well.
Of course, the other factor is that this one has horizontal side sheathing, and looking at the Middletown photo it looks like vertical boards but no battens. Since it's for Chris' layout, I figured I'd see what his preference is. Both of us agree that's what we think it looks like. So here are the pieces cut out of some scribed wood I had on hand.
Note that on the styrene version I decided to cut the large window opening lower, and the piece I cut out has been moved up to frame the top of the window.
The styrene parts make a nice template, and I may decide to complete that structure eventually. But for now I'm working on the wood one.
So it seems as good a place as any for a few comments on materials. I like the idea of using wood because you can stain it and sand it to weather it like I did on the deck of the first scale track. Stain doesn't penetrate styrene, and sanding styrene after you've painted and weathered it just exposes white styrene. So there are some interesting finishing and weathering approaches with wood that you can't do in styrene. In addition, cutting out windows in wood is much easier, as it's a softer material than styrene. However, wood has a grain that styrene lacks. Cutting across the grain is much different than cutting with it, and in most cases when cutting against it I found a razor saw a better tool when I could use it.
Styrene, on the other hand, is easy to cut with the score and snap method, but that can't be used for the first three sides of a window. I also find that when trying to cut all the way through styrene (instead of score and snap), even with multiple passes, the result is an edge that requires filing to finish because it's not perfectly straight. But the biggest benefits is that it doesn't warp like wood, especially thin wood. Paint and glues have more than enough moisture to make these significant issues. Thin styrene is stronger as well. Furthermore, gluing styrene is both simple and strong with styrene cement that "welds" the parts together. While the old adage is that when gluing two pieces of wood together, the joint is stronger than the wood is true. The problem is, the wood we typically use in modeling is very soft. So a layer of wood can easily slough off with the glue.
So you'll note that after painting with a craft acrylic, the wood has warped considerably. Especially the pieces with a window or door cut out. I knew this would happen (and that this wood was too think for structural integrity anyway), but I didn't want to strengthen it until after painting...
So I could use clear styrene for both structural strength and as window glazing.
Since I hadn't determined exactly how I was going to assemble the model, I cut the styrene so it was smaller on all 4 dimensions. This allowed more flexibility in assembly.
Because the primary interior structure is the clear styrene, all of the window glazing is done. I chopped up some old Walthers windows (what I had on hand), but decided they were too coarse for the model. So I have several other options on order and I'll decide which I like best. I'll be able to paint them before installation so I don't have to worry about harming the glazing.
But really, I figured it's a simple little building to try my hand at scratchbuilding.
After going through the Railway Prototype Cyclopedia article, I realized I had missed that there is a 2-foot clearance around the scale itself, including the ends, within the scale pit. Which means there is at least 2-feet of wood boards between the end of the scale and the end of the scale pit. It also allowed me to ensure my measurement on all sides were within the standard.
So I started by taking rough measurements of the completed Scale House and cutting out the basic parts.
The basic parts and their scale dimensions.
Then I plotted out the windows and the door. Since the windows will have a frame, cutting out the side windows right to the corner won't be a problem. The same thing in cutting the front window from the top.
Board and batten siding can be made from a lot of different size lumber. But the dimensions I went with is essentially a 1" x 10" main board, with a 1" x 4" batten. The space between the battens works out to about 8" so I drew lines at 1' intervals.
I decided on the dimension in part because of what I thought looked good with the options I had on hand, and also what closely matched the dimensions noted on construction sites online.
So I marked the lines on all the parts, and started cutting out the windows and doors. I then completed the battens on a couple of pieces to see how I liked it.
You'll note that the side of the building has been redrawn with a new window location.
And the door has been moved to the back. Why? Because I wasn't really trying to recreate the Blair Line model. I want to make the structure that was there. Of course, we only have a (very) partial shot of the scale house in Middletown. Here's John Wallace's photo again:
I've decided that since most scale houses had windows on both sides, and I think a door would be taller, that the frame on the side is a window. It's pretty much centered on the side, so I moved the windows on both sides. Which means the door needs to be moved to the back. So part of me says the door would be on the side, so you're never stepping out of the building into the way of a moving train. But the general need for the windows makes a door on the back logical.
The other New Haven scale house picture that I could quickly put my hands on is this one. I've seen others, and I can say every once is a little different. Some had the angled corners like the Walthers model, and others were this simple rectangular shack. Since this looks quite similar to the one in Middletown, I'm using it as a guide as well.
Of course, the other factor is that this one has horizontal side sheathing, and looking at the Middletown photo it looks like vertical boards but no battens. Since it's for Chris' layout, I figured I'd see what his preference is. Both of us agree that's what we think it looks like. So here are the pieces cut out of some scribed wood I had on hand.
Note that on the styrene version I decided to cut the large window opening lower, and the piece I cut out has been moved up to frame the top of the window.
The styrene parts make a nice template, and I may decide to complete that structure eventually. But for now I'm working on the wood one.
So it seems as good a place as any for a few comments on materials. I like the idea of using wood because you can stain it and sand it to weather it like I did on the deck of the first scale track. Stain doesn't penetrate styrene, and sanding styrene after you've painted and weathered it just exposes white styrene. So there are some interesting finishing and weathering approaches with wood that you can't do in styrene. In addition, cutting out windows in wood is much easier, as it's a softer material than styrene. However, wood has a grain that styrene lacks. Cutting across the grain is much different than cutting with it, and in most cases when cutting against it I found a razor saw a better tool when I could use it.
Styrene, on the other hand, is easy to cut with the score and snap method, but that can't be used for the first three sides of a window. I also find that when trying to cut all the way through styrene (instead of score and snap), even with multiple passes, the result is an edge that requires filing to finish because it's not perfectly straight. But the biggest benefits is that it doesn't warp like wood, especially thin wood. Paint and glues have more than enough moisture to make these significant issues. Thin styrene is stronger as well. Furthermore, gluing styrene is both simple and strong with styrene cement that "welds" the parts together. While the old adage is that when gluing two pieces of wood together, the joint is stronger than the wood is true. The problem is, the wood we typically use in modeling is very soft. So a layer of wood can easily slough off with the glue.
So you'll note that after painting with a craft acrylic, the wood has warped considerably. Especially the pieces with a window or door cut out. I knew this would happen (and that this wood was too think for structural integrity anyway), but I didn't want to strengthen it until after painting...
So I could use clear styrene for both structural strength and as window glazing.
Since I hadn't determined exactly how I was going to assemble the model, I cut the styrene so it was smaller on all 4 dimensions. This allowed more flexibility in assembly.
I used large 8' x 8' pieces to act as both a frame to assemble it, and the foundation of the building.
Because the primary interior structure is the clear styrene, all of the window glazing is done. I chopped up some old Walthers windows (what I had on hand), but decided they were too coarse for the model. So I have several other options on order and I'll decide which I like best. I'll be able to paint them before installation so I don't have to worry about harming the glazing.
I haven't finished the roof, obviously. The door is scratchbuilt. The interior on the back is regular white styrene since there's no window. I first drew the pattern on the door and started by installing the first horizontal piece at the top of the door, then using a full piece of strip styrene one of the vertical pieces (the long "handle" makes it easy). Once the glue had done it's job, I cut it to length (to where the next horizontal piece is), and did the same for the other two verticals. Then I added the horizontal piece, and used the same approach for the bottom half of the door. I drilled a small hole and used a piece of wire for the door knob.
I also used strip styrene to finish the corners and fascia and the frame around the door. I will do the same around the windows once I've installed mullions.
Next: The next major piece was the scale track itself. Unlike New Britain, it's a gantlet track in Middletown. Something I had wanted to try.
Monday, October 22, 2018
Weathered Steel
Well, I thought I was done...
Chris needs a scale track too, and there were a few things I thought I'd do differently after I finished the first one. So there is more to come.
I did start the storm guards for mine, and I'm really happy with the finish I came up with. I started by painting it with a Rail Tie Brown paint marker. This is Floquil, which isn't readily available anymore, but Woodland Scenics makes them. At some point I plan on comparing colors to the much larger selection available at art stores too. In this case, the exact color doesn't really matter, I'd just suggest starting with brown.
Since styrene is pretty smooth, trying to brush (or in this case, draw) it on tends to streak a lot. Since the tip on this one was well mashed anyway, I just smushed it straight down like I was stippling. I then immediately started using Pan Pastels in the same manner, with neutral gray shade, and a couple of browns to get a random slightly rusty look, then brightened it with the neutral gray tint. I also did some on a larger sheet of styrene to see how it would work over larger areas, and to make it easier to see.
Here are some in progress photos:
These are all completed, but at slightly different angles. The lighting makes a big difference as you can see. The wood skewer in the last photo is there just to give the camera something to focus on.
I'm really happy with the results, and it looks even more amazing in person specifically because the angle and lighting really highlight the variations well. I'm going to play around with the technique for the interior or gondolas and hoppers, and I'm also experimenting with different color applications for concrete and asphalt.
Chris needs a scale track too, and there were a few things I thought I'd do differently after I finished the first one. So there is more to come.
I did start the storm guards for mine, and I'm really happy with the finish I came up with. I started by painting it with a Rail Tie Brown paint marker. This is Floquil, which isn't readily available anymore, but Woodland Scenics makes them. At some point I plan on comparing colors to the much larger selection available at art stores too. In this case, the exact color doesn't really matter, I'd just suggest starting with brown.
Since styrene is pretty smooth, trying to brush (or in this case, draw) it on tends to streak a lot. Since the tip on this one was well mashed anyway, I just smushed it straight down like I was stippling. I then immediately started using Pan Pastels in the same manner, with neutral gray shade, and a couple of browns to get a random slightly rusty look, then brightened it with the neutral gray tint. I also did some on a larger sheet of styrene to see how it would work over larger areas, and to make it easier to see.
Here are some in progress photos:
These are all completed, but at slightly different angles. The lighting makes a big difference as you can see. The wood skewer in the last photo is there just to give the camera something to focus on.
Friday, October 19, 2018
Getting Ready for More (or Less) Operations
In past operating sessions, the layout has operated well. It's more than exceeding expectations in regards to creating a prototypical operation, complete with a freight agent/yard master. But the reality is, while I know exactly what I want in terms of paperwork, waybills and such, I'm not there yet. In addition, it was also clear that the amount of work can be overwhelming for folks not used to as much switching work. Combine that with the fact that there will soon be a new section of the layout to start testing and working into the ops sessions, it's a good time to create a scaled-back operating session.
So that means reducing the number of trains, and the number of cars to work. While we could just choose some, why not model the traffic in a different year?
In the busiest years, such as early 1947, the amount of work is substantial:
Along with the freights, there are 8 passenger trains through the day.
It still boggles my mind that there was this much traffic through the region. But it is a lot of work to manage. In addition, right now we need to be testing the mechanical aspects of the equipment and layout so I can keep moving with the scenery base. It's also been a while since we've had extensive testing of the layout. A couple of years ago, it was getting regular use, either with ops sessions, or testing and preparation. That hasn't happened in a while.
But it's also quite possible to model the history of the railroad. The infrastructure in New Britain, that is the trackwork, didn't change (much) between 1946 and 1954 when the mainline was single-tracked:
I'm planning on seeing if I can build an insert to cover Lockshop pond. If it works, I'll probably build two - one when the parking lot was being built, and one as a parking lot. It might be a bit more difficult to do the same for the two tracks that became a parking lot in the yard, although the leads remained east of Elm St.
Since the Railroad Arcade will be a facade to be connected to the layout for the purposes of photos, it's easy enough to construct it as modules so I can add the correct storefronts for a given year.
City Coal and Wood will be made removable for the same reason, because it will be very noticeable when it's gone.
Cars and billboards can be switched, and the roster of locomotives and freight cars can be adjusted for the year. The variety of locomotives is one of the particularly interesting thing about the range of years I've selected. The only equipment-related issue that's not easily addressed are the reweigh dates on freight cars. These aren't typically something easily noticed while operating, but I can be selective when taking photos. Although you only see one side of the car during an ops session, so I could put a different reweigh date on each side.
Anyway, the point is, by modeling multiple years, and paying attention to the details that changed in that period, you have the opportunity to model the history of the railroad over that period. That also includes modeling the history of operations over that period too, and in New Britain that changed quite a bit.
For example, instead of modeling late summer/early fall of 1947, we can jump to late summer/early fall 1949. What impact does that have on operations?
1947 Motive Power
Two 44-tonners + Stanley switcher (3)
Two FA-1 A/B/A sets (6)
Two S-2s (2)
K-1-d
R-1-b
I-2s and DL-109 or I-4 for passenger trains (3)
That's a total of 16 locomotives, with at least 3 steam (not including the Stanley switcher)
1949 Motive Power
2 44-tonners + Stanley switcher (3)
FA-1 A/B/A set (3)
2 RS-2s (2)
2 RS-1s and a DL-109 for passenger trains (3)
That requires only 11 locomotives, and all diesel.
Of course, I love the mix of the '47 session, with big and small steam, along with road and yard diesels in a variety of paint schemes.
If the session ends at 7:00 pm, we could eliminate an A/B/A set and the R-1-b, bringing the total to 11. But in the 1949 session it eliminates the FAs altogether, leaving a total of 8 locomotives.
Even-numbered trains are eastbound, odd-numbered trains are westbound.
One final train, passenger #472, is schedules for 9.20 pm, and that one is unique in that it picks up a baggage car that has been sitting in front of New Britain station all day and is full of storage mail.
Overall it's a very easy session to be prepared for in terms of equipment. But even better, it will allow us to focus on testing the switching jobs, which is the primary work on the layout. We've made changes to Stanley Works (more track, and we think we have a better idea of how they operated and interchanged with the New Haven), and Whiting Street makes a big difference in terms of work for the two New Haven switchers.
All of this hides the fact that there's a lot of work during the session, switching out 50-60 cars. The switch crews are classifying, setting out, picking up, weighing some cars, and blocking the outbound trains.
The through trains probably don't need two crew members most of the time, but if there is somebody free a brakeman would help when they are dropping off and/or picking up cars. The layout could be operated with as few as 5, and as many as 9.
So that's the current plan. A reduced operating session, probably with simplified paperwork, to get things going sooner rather than later, and hopefully frequently too, for testing purposes. Because once Whiting Street is in, I want to be working on all of the ground cover, ballast, roads and vegetation as soon as possible.
So that means reducing the number of trains, and the number of cars to work. While we could just choose some, why not model the traffic in a different year?
In the busiest years, such as early 1947, the amount of work is substantial:
- OA-4, OA-6, NY-2, and EA-2 leave cuts of cars overnight.
- NY-4 and HDX-5 bring additional cars in the first two hours (30 minutes on the fast clock).
- Outbound cars have to be blocked for 6 trains: YN-3, HDX-5, ANE-1, AO-5, OA-4 and YN-1.
Along with the freights, there are 8 passenger trains through the day.
It still boggles my mind that there was this much traffic through the region. But it is a lot of work to manage. In addition, right now we need to be testing the mechanical aspects of the equipment and layout so I can keep moving with the scenery base. It's also been a while since we've had extensive testing of the layout. A couple of years ago, it was getting regular use, either with ops sessions, or testing and preparation. That hasn't happened in a while.
Tangent: Modeling Multiple Years
To me, I'm not just modeling the prototype equipment, track arrangement, structures, and so on. It's been said, "if you're modeling the 1950s, you're modeling 1959 poorly." I understand the sentiment, because if you choose to run equipment that left the roster in 1950 with equipment that didn't exist until 1957, then you aren't modeling 1950 , 1959 or any year in between accurately. And I agree with that assessment.But it's also quite possible to model the history of the railroad. The infrastructure in New Britain, that is the trackwork, didn't change (much) between 1946 and 1954 when the mainline was single-tracked:
- At some point in that period, Farm Yard, a small yard across Myrtle Street was reduced in size, but I didn't have the space to model the yard as it was before that time.
- Yard tracks #15 and #17 were removed c1953 and turned into a parking lot, although I don't have an exact date as yet.
- Lockshop pond was also filled and turned into a parking lot.
- Several shops and industries changed, particularly in the Railroad Arcade.
- City Coal and Wood was torn down, possibly between 1953 and 1954, it was definitely there in 1951.
I'm planning on seeing if I can build an insert to cover Lockshop pond. If it works, I'll probably build two - one when the parking lot was being built, and one as a parking lot. It might be a bit more difficult to do the same for the two tracks that became a parking lot in the yard, although the leads remained east of Elm St.
Since the Railroad Arcade will be a facade to be connected to the layout for the purposes of photos, it's easy enough to construct it as modules so I can add the correct storefronts for a given year.
City Coal & Wood behind L-1 #3229 c1946 from a Paul Wales video.
City Coal and Wood will be made removable for the same reason, because it will be very noticeable when it's gone.
Cars and billboards can be switched, and the roster of locomotives and freight cars can be adjusted for the year. The variety of locomotives is one of the particularly interesting thing about the range of years I've selected. The only equipment-related issue that's not easily addressed are the reweigh dates on freight cars. These aren't typically something easily noticed while operating, but I can be selective when taking photos. Although you only see one side of the car during an ops session, so I could put a different reweigh date on each side.
Anyway, the point is, by modeling multiple years, and paying attention to the details that changed in that period, you have the opportunity to model the history of the railroad over that period. That also includes modeling the history of operations over that period too, and in New Britain that changed quite a bit.
For example, instead of modeling late summer/early fall of 1947, we can jump to late summer/early fall 1949. What impact does that have on operations?
- OA-6 and NY-2 leave cuts of cars overnight.
- NY-4 drops off a second cut of cars at Whiting Street Yard at the start of the session.
- There is no local freight (HDX-5)
- Crews need to block cuts for 3 outbound trains (YN-3, AO-5, and YN-1)
- There's the same 8 passenger trains.
1947 Motive Power
Two 44-tonners + Stanley switcher (3)
Two FA-1 A/B/A sets (6)
Two S-2s (2)
K-1-d
R-1-b
I-2s and DL-109 or I-4 for passenger trains (3)
That's a total of 16 locomotives, with at least 3 steam (not including the Stanley switcher)
1949 Motive Power
2 44-tonners + Stanley switcher (3)
FA-1 A/B/A set (3)
2 RS-2s (2)
2 RS-1s and a DL-109 for passenger trains (3)
That requires only 11 locomotives, and all diesel.
Of course, I love the mix of the '47 session, with big and small steam, along with road and yard diesels in a variety of paint schemes.
If the session ends at 7:00 pm, we could eliminate an A/B/A set and the R-1-b, bringing the total to 11. But in the 1949 session it eliminates the FAs altogether, leaving a total of 8 locomotives.
1949 Schedule (for shakedown sessions and open houses)
7:00 am to 7:00 pmEven-numbered trains are eastbound, odd-numbered trains are westbound.
- 7.00 am: 12-15 cars on Track #5 at N.B. Yard, and 12-15 cars on Track #6 at Whiting St. Yard.
- 7.05: NY-4 drops 5-6 cars at Whiting St. Yard.
- 7.32: 444
- 8.35: 446
- 12.43 pm: 131
- 2.00: YN-3 drops off cars to be weighed and cars for OA-6; picks up cars blocked for Berlin, Cremo Brewery, North Haven, Cedar Hill, New London (CV) and Worcester.
- 4.05: 157
- 4.41: 463
- 4.45: Freight house closes, cars can be pulled at 5.00 pm.
- 5.43: 136
- 7.00: Session over, cut on Track #5 at N.B. Yard blocked for Waterbury, Maybrook loads, Maybrook empties. Cut on Track #6 at Whiting St. Yard blocked for Speed Witch, Philadelphia Transfer, Enola, New London (CV), and Cedar Hill.
One final train, passenger #472, is schedules for 9.20 pm, and that one is unique in that it picks up a baggage car that has been sitting in front of New Britain station all day and is full of storage mail.
Overall it's a very easy session to be prepared for in terms of equipment. But even better, it will allow us to focus on testing the switching jobs, which is the primary work on the layout. We've made changes to Stanley Works (more track, and we think we have a better idea of how they operated and interchanged with the New Haven), and Whiting Street makes a big difference in terms of work for the two New Haven switchers.
All of this hides the fact that there's a lot of work during the session, switching out 50-60 cars. The switch crews are classifying, setting out, picking up, weighing some cars, and blocking the outbound trains.
Crew
I've been considering splitting the Agent's job into an Agent and Yardmaster job. The Agent would continue to handle the waybills and write out the list of cars and destinations, along with the list of cars to pick up. The Yardmaster would organize that work into switch lists for both NH switching crews. I think that it's more prototypical and will help take some pressure off of the Agent and the switching crews. In other words, in terms of understanding the layout and how to operate it will really require one fully-qualified yardmaster.- Freight/Station Agent
- Yardmaster
- Engineer and Brakeman for each switching crew (Two NH and Stanley Works)
- Through train Engineer/Conductor.
The through trains probably don't need two crew members most of the time, but if there is somebody free a brakeman would help when they are dropping off and/or picking up cars. The layout could be operated with as few as 5, and as many as 9.
So that's the current plan. A reduced operating session, probably with simplified paperwork, to get things going sooner rather than later, and hopefully frequently too, for testing purposes. Because once Whiting Street is in, I want to be working on all of the ground cover, ballast, roads and vegetation as soon as possible.
Monday, October 15, 2018
Scale Track Part II
The last post detailed the basic construction of the scale track itself. Here's the finishing touches (for now).
After it dried overnight, I was looking at the picture of the Middletown track and noticed that the decking is quite close to the outside rail. This makes sense, since there's no reason in building the concrete-lined pit any bigger than needed. It will also look better in the scene.
So I cut out some of the decking, and started making the concrete "frame" using 0.060" x 0.060" styrene strip. I then cut off the extra PC Board before continuing with the styrene strip. I also trimmed the wood decking to be flush around the entire scale track.
For most of the frame I need to use two pieces stacked on top of each other for the correct thickness. This also allows me to do the single layer that is needed under the scale house.
I decided I wanted to permanently attach the scale house to the scale track. In addition, all of this is made of different materials, and I wanted to attach the frame and foundation to styrene so I could use styrene cement for a better bond around the unit. So I cut a base from 0.010" styrene. The PC Board is slightly shorter than the craft foam, so this won't really have an impact on the track.
I assembled the rest of the styrene strips onto the base and around the scale track. The scale house is a Blair Line model, built according to the instructions. I considered the Walthers kit, but it has the house with angled corner walls. While some New Haven scale houses were of this type, this one matches the Middletown one better.
After that, I put the scrap track on it, and tested a couple of cars for clearance.
That looked great, so after letting things dry a bit and working on other projects, I wanted to do a quick finish on the decking since the scale house is already finished. Plus, it's easier to do it before it's permanently installed.
I started by painting all of the "concrete" using Tru Color Concrete. I then used the Citadel brown ink, thinned with an alcohol wash I have that already has brown and black inks, plus India ink. It's a very thin wash, though (I use it to dip line poles overnight), and the citadel inks are too concentrated (probably more so since I bought them in the '80s).
It was pretty dark, so I lightly sanded the deck to lighten it.
I then went to my usual Pan Pastels for further weathering. These are the colors I used:
For the concrete I used Burnt Sienna Shade, then Yellow Ochre Extra Dark, then the Neutral Grey Extra Dark, and then blended all of that with Neutral Grey Tint. For the deck, I scribed board ends for 12' long boards, then started randomly coloring individual boards with the mix of colors I had using a small brush.
I then wiped down the deck to remove excess and tone down the different colors. I also touched up the scale house. I had originally done an old weathered look. Looking at the Middletown picture, it looks like it's in pretty good shape.
Once it's installed I'll need to make the rain guards. I also need to look at where I'll install the sensor for the Boulder Creek Engineering working track scale.
After it dried overnight, I was looking at the picture of the Middletown track and noticed that the decking is quite close to the outside rail. This makes sense, since there's no reason in building the concrete-lined pit any bigger than needed. It will also look better in the scene.
For most of the frame I need to use two pieces stacked on top of each other for the correct thickness. This also allows me to do the single layer that is needed under the scale house.

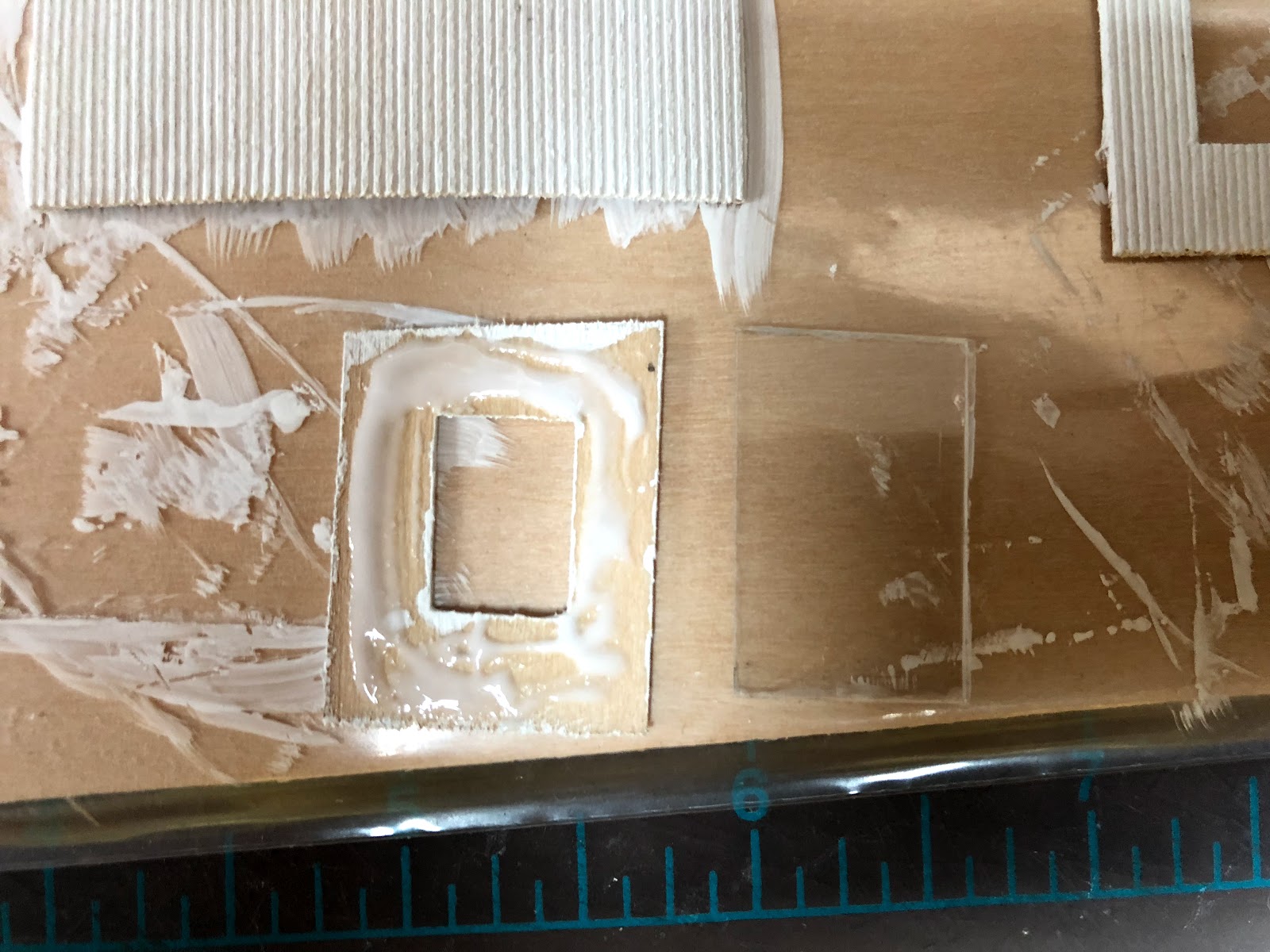

I decided I wanted to permanently attach the scale house to the scale track. In addition, all of this is made of different materials, and I wanted to attach the frame and foundation to styrene so I could use styrene cement for a better bond around the unit. So I cut a base from 0.010" styrene. The PC Board is slightly shorter than the craft foam, so this won't really have an impact on the track.
I assembled the rest of the styrene strips onto the base and around the scale track. The scale house is a Blair Line model, built according to the instructions. I considered the Walthers kit, but it has the house with angled corner walls. While some New Haven scale houses were of this type, this one matches the Middletown one better.
I started by painting all of the "concrete" using Tru Color Concrete. I then used the Citadel brown ink, thinned with an alcohol wash I have that already has brown and black inks, plus India ink. It's a very thin wash, though (I use it to dip line poles overnight), and the citadel inks are too concentrated (probably more so since I bought them in the '80s).
I then went to my usual Pan Pastels for further weathering. These are the colors I used:
For the concrete I used Burnt Sienna Shade, then Yellow Ochre Extra Dark, then the Neutral Grey Extra Dark, and then blended all of that with Neutral Grey Tint. For the deck, I scribed board ends for 12' long boards, then started randomly coloring individual boards with the mix of colors I had using a small brush.
Once it's installed I'll need to make the rain guards. I also need to look at where I'll install the sensor for the Boulder Creek Engineering working track scale.
Subscribe to:
Posts (Atom)
