44-tonners Part IV

Builders Photo of DEY-4 0806. Phase Ic.

With Rapido's announcement of 44-tonners, The samples look (and was running) great, I've passed on my suggestions to Bill/Rapido so I'm looking forward to their release.

 I, of course, know what I will need, but I've seen some questions online as to who had the earlier phases, and which road numbers were which phase. I've compiled a quick list of the original owners of the Phase Ic and Phase III locomotives.

This information is from Extra 2000 South issue 51, and issue 52, which define the "phases" and includes drawings of Phase Ic, II, III, IV, V (51) and Ib and Vb (52). They also include serial numbers and all of the subsequent owners and dispositions through mid-1975 and lots of in service and builders' photos.

Phase Ic (53 units) (S/N 13092 - 15131)

  • B&M:  114 - 117
  • D&RGW:  38 - 44
  • Iowa Ordnance Plant: 8-44, 9-44, 10-44, 11-44
  • Kansas Ordnance Plant: 2
  • Kentucky Ordnance Works: 1
  • LV: 60-62
  • MEC:  11 - 12
  • MILW (CMStP&P): 1701
  • Minneapolis & St. Louis Ry: D-172, D-842
  • Missouri & Illinois Bridge & Belt: 100
  • MP: 811
    • BSL&W: 815
    • I-GN: 812
    • StLB&M: 813 - 814
  • NYNH&H: 0800 - 0806
  • NYO&W: 101 - 105
  • Pine Buff Arsenal-US Army: unknown road number
  • San Francisco & Napa Valley Ry: 30, 40
  • Scioto Ordnance Plant: unknown road number
  • Sheffield Steel Corporation: 1 - 3
  • SP: 1900 - 1902
  • US Navy - Brooklyn Navy Yard unknown road number
  • US Naval Supply Depot, Pier 91 unknown road number
  • Washington & Old Dominion RR: 47 - 49

Phase III (36 units) (S/N 18145 - 27794, 27973 - 27975)

  • Atlantic & East Carolina RR: 8
  • ATSF: 463 - 468
  • Fernwood Columbia & Gulf RR: D-1, D-2, D-3
  • High Point Thomasville & Denton: 101
  • MEC: 13-15
  • NYNH&H: 0807-0816
  • Pacific Electric Railway: 1652-1654
  • Sheffield Steel Co: 6
  • US Army Aberdeen Proving Grounds: 7931-7932
  • US Army Fort Clark: 7492
  • US Army Fort Miffin Naval Ammo Depot: 7493
  • US Naval Air Station: unknown road numbers (2 units)
  • US Naval Ammunition Depot: unknown road number
  • US Naval Supply Depot: unknown road number
  • US Navy Whiting Field Naval Air Command: 5

Phase IVa (S/N 27793 - 29994)

  • You can use the list at the Diesel Shop to identify them.

New Haven 44-tonners

I've covered the DEY-4 class of locomotives here, here, and here. But since this will be the primary locomotive used in New Britain, this is a good place to add a little more information.

The Bachmann chassis suffered from the common issue of nylon gears that crack over time. The gears are no longer available, but I found that the latest truck design (at least their fourth) fit into my existing chassis. Since I needed to take them apart, I decided I wanted to upgrade the decoder and install a keep-alive, so they are waiting in the queue for that upgrade. I have two W&R brass shells of Phase Ic, and the Bachmann shell I modified into a Phase III.

Instead, I'll use the decoders elsewhere and switch to the Rapido locomotives, although I'm still waiting to see how well they can haul up my 2% grade from Whiting St Yard.

I have the following assignments during my era (including Phase and scheme):

Spring 1948
  • 0802 - Phase Ic - delivery
  • 0812 - Phase III - delivery
Autumn 1948
  • 0802 - Phase Ic - delivery
  • 0805 - Phase Ic - delivery
Spring 1949
  • 0802 - Phase Ic - delivery
  • 0805 - Phase Ic - delivery
Autumn 1949
  • 0805 - Phase Ic - delivery
  • 0806 - Phase Ic - delivery
Autumn 1950
  • 0805 - Phase Ic - delivery
  • 0806 - Phase Ic - delivery
Spring 1952
  • 0802 - Phase Ic - delivery
  • 0804 - Phase Ic - Warm Orange with Pullman Green cab and top of hood
Autumn 1952
  • 0802 - Phase Ic - delivery
  • 0804 - Phase Ic - Warm Orange with Pullman Green cab and top of hood
Autumn 1954
  • 0810 - Phase III - Warm Orange with Pullman Green cab and top of hood
  • 0813 - Phase III - Warm Orange with Pullman Green cab and top of hood
The seven locomotives assigned are:
  • 0802 - Phase Ic - delivery
  • 0804 - Phase Ic - Warm Orange with Pullman Green cab and top of hood
  • 0805 - Phase Ic - delivery
  • 0806 - Phase Ic - delivery
  • 0810 - Phase III - Warm Orange with Pullman Green cab and top of hood
  • 0812 - Phase III - delivery
  • 0813 - Phase III - Warm Orange with Pullman Green cab

Rapido is releasing 0801, 0802, and 0804 in the Warm Orange with Pullman Green cab and top of hood scheme. So I'll definitely be getting 0804.

0802 also received this scheme in August 1953. Since that was a regularly assigned locomotive for many of the years (and was back in 1956), I'll get that one as too.

Even though 0812 was identified in Spring of 1948, I like the idea of having at least one Phase III in the delivery scheme.

For the rest, it's a question of if/when they will release the other schemes. I've only identified two (0812, 0813) that received the Warm Orange with Pullman Green cabs, so it seems unlikely to be done soon. But it's also very easy to do provided the cab is a separate piece.

The delivery scheme is very easy to do, since it's just Pullman Green. And we already have decals for that scheme. I'd prefer that it was factory painted. All except the two Phase IVa locomotives had this scheme, and several appear to never have received a second scheme. This would be a good option for them to release.

You'll note in the comments a discussion with Ken Baker. I was incorrect in those comments about the McGinnis scheme. There's a thread he started at the NHRHTA forum on the subject.

Which is a much better resource for information on the McGinnis and later eras than me!

Wednesday, January 25, 2023

New Cars!

 I just received the Eastern Seaboard Models Magor/PC&F XIH box cars. For those unfamiliar with the company, this is their first HO scale offering, after years of excellent N-scale products.

Bryan has been posting updates, photos, and videos on a regular basis which highlighted testing and various rejections (including just as they were about to ship) to ensure these models were up to their standards.

I haven't done any significant research on the prototype since the NH version was built mid-1953 and just sneaks into my modeling era. But these are actually two closely related prototypes, 300 cars built for BAR by Magor in 1950, and another 150 cars (plus 100 for the NH) built by PC&F.

Magor-built BAR car.

PC&F-built car.

The PC&F cars (right) used a different roof than the Magor-built cars (left).

The cars are beautifully finished with the ever-popular (even on incorrect prototypes) "State of Maine" scheme. There has always been a lot of debate about the scheme, particularly the ends. Although the ends were painted the same color as the roof and top third of the car sides, it was mixed with asphaltum making them look black. I prefer this choice as it better matches photos of the cars.

I'm sure some will complain about the price, but I'm surprised it's as low as it is. It's their first foray into HO scale, and the amount of testing and changes alone add to the cost. But they also have genuine Kadee couplers, Intermountain trucks and wheelsets, and Hi-Tech rubber air hoses. Although OEM prices are less than what we as consumers pay, it does increase the cost of producing the product.

The main reason I'm posting this now (aside from them arriving today) is that Eastern Seaboard Models is they will be in the Mallary building (section 127) at the Amherst Railroad Hobby Show at West Springfield this weekend. If you didn't order the cars, go check them out in person. I doubt whatever is left will last long. I got mine through NHRHTA and I don't see them listed on the site there at all.

Monday, January 23, 2023

New Britain Station - Relaunch

Hand-colored postcard of New Britain Station.

On November 2, 2007 I first published New Britain Station. At the time I was still planning my layout.

I posted about the basic concept of the design, with a helix at either end, in March of the following year

It wasn't until almost a year later that I had removed the old layout to prepare construction for the New Britain layout.

In 2011, I had to move the website due to technical issues. Quoting guitarist Robert Fripp, "turn a seeming disadvantage to an advantage," and I took the opportunity to completely redesign the site. In 2014, again due to some technical changes, I switched the blog to be hosted at Blogger. It is more robust and added the ability for readers to comment on my posts.

Today I'm launching New Britain Station 3.0. The old Google Sites is being retired, but the deadline was (fortunately) pushed back several times. Which again allowed me to not just transfer it but redesign it entirely. I've updated and rewritten every page and added loads of photos. Although quite time consuming, I have learned so much more since 2011, it really needed a proper refresh. Hopefully for the last time. The blog will continue without any changes.

Postcards of New Britain

The photo at the top of the page is from a postcard produced for F.W. Woolworth Co. and is one I have used as the main photo on the site. Like most postcards, there's no copyright date but the one I have was postmarked in 1913. As it turns out, New Britain Station was a popular subject for postcards. I have found nine different ones to date - here they are:

Souvenir Postcard Co. N.Y., postmarked in 1907.

August Schmeltzer Co, Meriden Conn. Made in Germany. Postmarked 1911

Danzinger & Bermin, New Haven Conn.

Danzinger & Berman, New Haven Conn.

Chapin New Company, Hartford, Conn. Made in Germany. Postmarked 1908.

Chas. M. Hutlgren, New Britain, Conn. Made in Great Britain.

Leighton & Valentine Co., N.Y. City. Postmarked 1913

August Schmeltzer Co., Meriden, Conn. Made in Germany.

Wednesday, January 18, 2023

Another unusual car?

As I'm wrapping up the final few pages on the new website (for now) I was looking more closely at this photo of a J-1 (3019?) in Whiting Street Yard. I think this is a Kent Cochrane photo from c1940, but the window of time based on other elements in this, and another photo, is post-1936, pre-1945.

Is that a PRR X24 with horizontal sheathing and Youngstown doors?

The lettering in the upper left is "Autom/obiles"

Sure, it's a Pennsy car, how unusual can it be? Originally built 1913, the PRR rostered 2,000 cars. Not a lot for them, perhaps, but a lot of a distinctive class. But between 1934 and 1942 1,421 of the cars were converted to K7 stock cars. Only 318 remained in the 1938 ORER, and I've never seen another photo of an X24 with horizontal sheathing.There were still 289 in 1943, and 147 in 1948.

Wednesday, January 11, 2023

Baggage Cars

Somebody was looking for some baggage car kits, so I was looking through photos to identify the classes of baggage cars I'd need (and what I could spare) and came across something rather interesting. I also needed to finish the updating the page on the new website for passenger equipment, which led to more digging, and yet another interesting find. The result? A post on baggage cars.

Steel Underframe (Wood) Baggage Cars (3800-3946)

Photos seem to confirm that all of the Highland Line passenger trains were assigned Steel Underframe Baggage Cars from the 3800-3946 series of cars. Like Pete Puma, I'll need three or four of them.

The next question is whether I need any steel baggage cars, and which ones. I knew that they showed up in several of the photos at the station. Each day there's a baggage car that is spotted at the station to bring storage mail to Hartford in the evening. I'm 99% sure that these would be 60' steel cars from the 5300-5404 series, and not the longer 70' cars since Train No. 472 is assigned 60' of storage mail.

Can I identify if they are the steel underframe vs steel cars? For example, in one of several Kent Cochrane photos, shere's I-2 No. 1300 at the station. To the left you can see the end of the baggage car.

If you note, the end rails are a simple right angle. That's the arrangement on the 3800-series of cars. Here's I-1 No. 1007 at the station and you can clearly see that the train has a wooden baggage car.

But at the station is another baggage car. If I zoom in, we can see that it has an upper right handrail at about a 45-degree angle.

That's a signature feature of the Osgood-Bradley built steel baggage cars. It won't tell us the length of the car, but since it's only assigned 60' of storage mail, I'm comfortable with that. Are they common?

60' Steel Baggage Car (5300-5404)

But then things get more interesting...

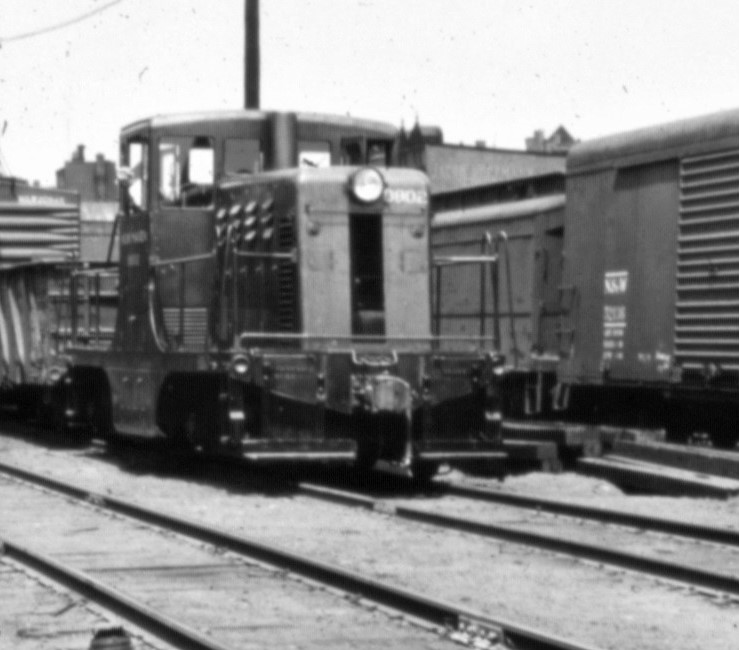

Three photos show alternate angles of baggage cars at the station. First is this baggage car behind DEY-4 No. 0803. You can see a belt line, so it's a steel car (I have commented in the past that I thought it was wood). What I find more interesting is that it's in the yard. That leads me to believe these were probably brought to New Britain by a freight train.

The second photo taken by Jim Karl on the 1949 day is moments later. Ted Culotta noticed the clerestory roof behind No. 0802, and I found the photo above later.

But wait, looking at the spacing between the Ward ventilators, there are six "windows" between them. A photo of in the Bob Liljestrand book shows that the 60' car have only four. Is that a 70' car?

The F&C model, and the prototype photo on their site shows the 70' car also has only four. But here are two photos (the second is of No. 5532) that show some of them had different spacings.

I already have a couple of the 70' car kits in progress, but the vents are cast into the roof and that complicates things. But it is interesting to see a 70' car in New Britain. Since this is a clerestory roof, it's from the 5500-5569 series of cars.

70' Steel Baggage Cars (5500-5569)

In that second Jim Karl photo we can also clearly see the side of two baggage cars spotted at the station. The first is clearly steel, and the second is wood. With three cars, it looks like several may have been brought at the beginning of the week. Counting panels, it appears to be a 60' car.

There's another even better shot of a steel and a wood baggage in the photo of the Comet at the station. These seems to be in the middle of a switching move, because the cars are sitting on the westbound main (Track No. 1).

In true New Haven fashion, though, it has to be different. The number of panels is obviously different than in the other photo. It also doesn't have Ward vents, nor the angled end railing. Yes, this is a different car. Unique, in fact, on the New Haven. Car no. 5407 was purchased second-hand in 1942 and is the only car on the railroad like it.

60' Steel Baggage Car (5407)

Could the baggage car in the photo of No. 1300 above also be this car since it lacks the angled end railing? No, because it has an Ajax handbrake, and 5407 has a "vertical wheel type," which, in the photo, looks a lot like an Equipco handbrake.

Some time ago I had used the Jim Karl photo as a commentary on rare cars. Well, here are a couple more. And apparently I need more baggage cars than I thought...
